Push-in Connectors
Lever Type, Push-in Type
Lever-Type Push-in Connectors
Material | Housing: Polycarbonate (PC), Lever: Polyoxymethylene (POM)
Flame Resistance | Glow-wire test: 850°C (cover)
Certification | CE Certified
Rating | -40°C to 105°C / 450 V / 32 A
Country of Origin | China
| ALLPUM Wire Connectors – PE | |||||
|---|---|---|---|---|---|
| Product No. | Color | Poles | Wire Range (mm²) | Pull-out Force (N) | Packing |
| CMK-632 | Clear | 2p | 32A/450V/0.2~4.0mm² | 0.2 SQ 10N ≥ 4.0 SQ 60N ≥ | 100 pcs/pack, 2,500 pcs/case |
| CMK-633 | Clear | 3p | 32A/450V/0.2~4.0mm² | 100 pcs/pack, 2,500 pcs/case | |
| CMK-634 | Clear | 4p | 32A/450V/0.2~4.0mm² | 100 pcs/pack, 2,500 pcs/case | |
| CMK-635 | Clear | 5p | 32A/450V/0.2~4.0mm² | 0 pcs/pack, 1,250 pcs/case | |
| CMK-662 | Clear | 2p | 41A/600V/0.2~6.0mm² | 100 pcs/pack, 2,500 pcs/case | |
| CMK-663 | Clear | 3p | 41A/600V/0.2~6.0mm² | 100 pcs/pack, 2,500 pcs/case | |
| CMK-665 | Clear | 5p | 41A/600V/0.2~6.0mm² | 0 pcs/pack, 1,250 pcs/case | |

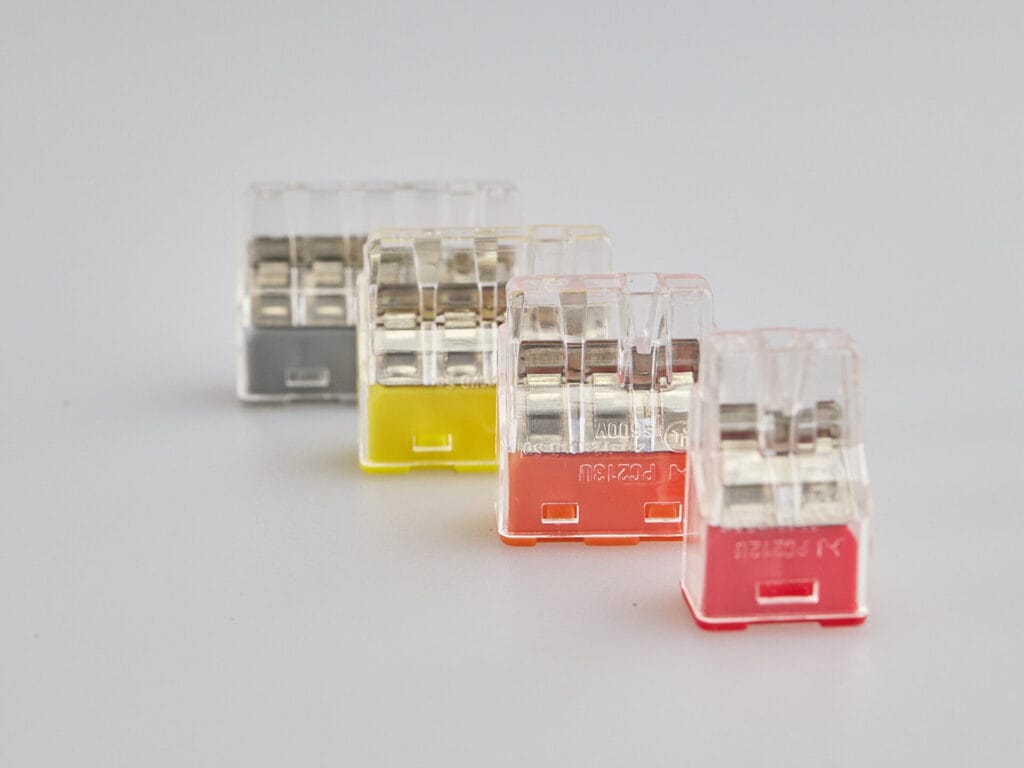

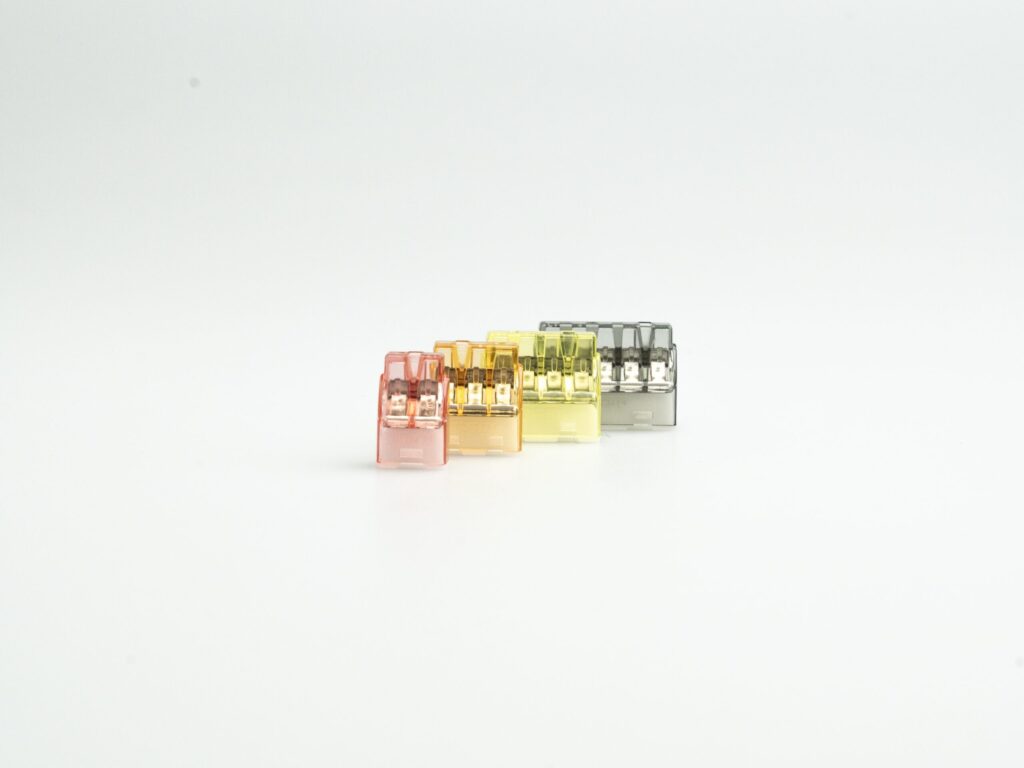

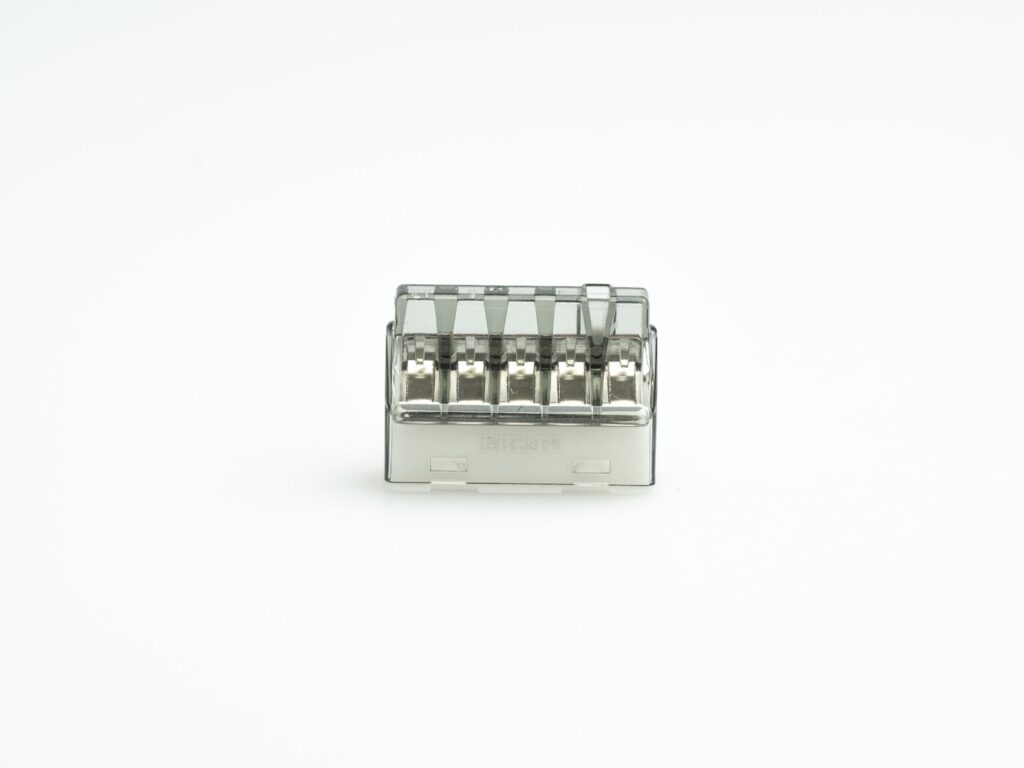

Push-in Type | Push-in Connectors
Material | Polycarbonate (PC)
Color | Red, Orange, Yellow, Gray
Certifications | CE / UL
Rating | Max. 105°C
Country of Origin | China
| ALLPUM Push-in Connectors | ||||
|---|---|---|---|---|
| Product No. | Color | Poles | Wire Range (mm²) | Pack (bag) |
| APPC-2P | Red | 2 | 24A/450V/2.5/Sol | 1000개 |
| APPC-3P | Orange | 3 | 24A/450V/2.5/Sol | 1000개 |
| APPC-4P | Yellow | 4 | 24A/450V/2.5/Sol | 500 pcs |
| APPC-5P | Gray | 5 | 24A/450V/2.5/Sol | 500 pcs |
