APWC

Wire Connector (PVC)

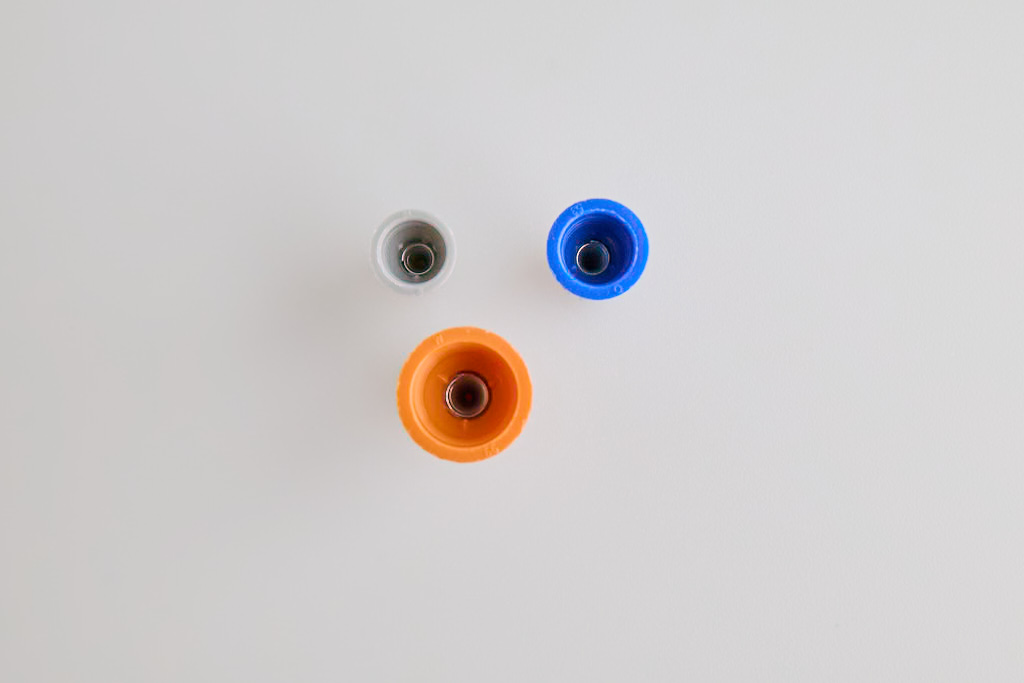

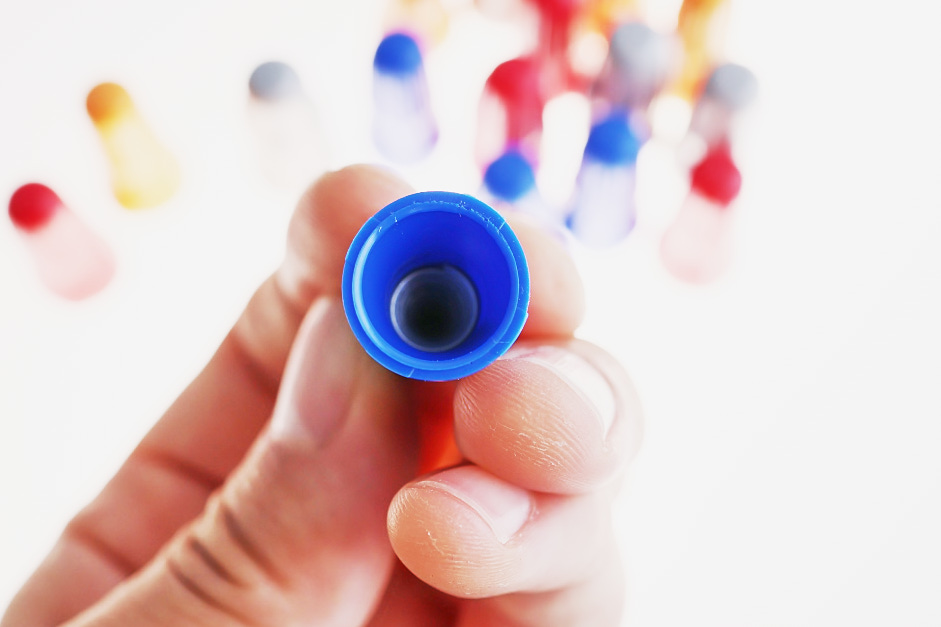

Screw-on wire connectors with a non-toxic, V-0 flame-retardant PVC body. Made in-house in Korea.

Made inKorea · HQ plant, Gwangju

Product information

SPECIFICATIONS

Swipe tables sideways — the first column (item code) stays in place.

Item	Color	A (mm)	B (mm)	C (mm)	Wire range (AWG)	Wire range (SQ, mm²)	Strip Length (mm)
APWC-20	Yellow	7.8	12	27.2	a) #14;2 · b) #12;3	a) 2;2 · b) 3.5;3	Solid 11.1 / Stranded 12.7
APWC-35	Red	8	12.5	27.2	a) #14;2 · b) #14;1 with #12;3	a) 2;2 · b) 3.5;1 with 3.5;3	Solid 11.1 / Stranded 12.7
APWC-55	Blue	8.4	13	28.2	a) #14;3 · b) #12;4	a) 2;3 · b) 3.5;4	Solid 12.7 / Stranded 15.1
APWC-80	Gray	8.6	13.5	28.2	a) #14;3 · b) #14;1 with #12;4	a) 2;3 · b) 2;1 with 3.5;4	Solid 13.9 / Stranded 15.9
