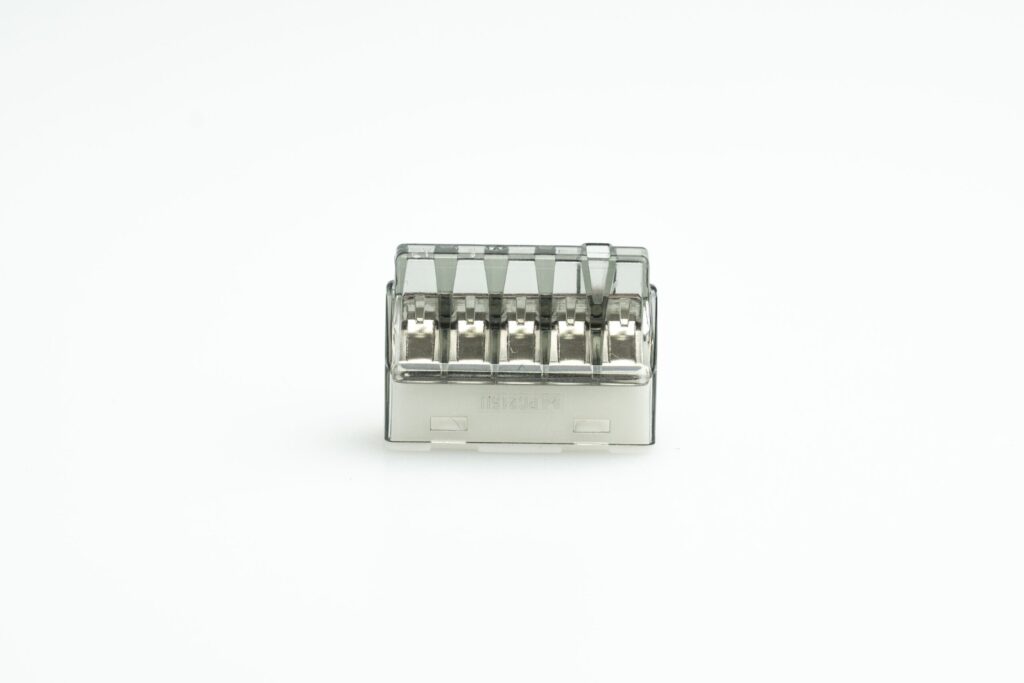

APPC-212U ~ 215U
Mini Push-in Connector
A compact push-in connector, smaller than the standard type, for lighting and building wiring in tight spaces.
Made inChina (OEM)
- UL
- CE
- CQC
Product information
- Material
- PC (UL94 V-2)
- Temperature
- IEC T85 / UL 105℃
- Rating
- 450V / 24A
- Wire range
- 24-12 AWG / 0.2~2.5 mm²
- Strip Length
- 11 mm
SPECIFICATIONS
Specifications
Swipe tables sideways — the first column (item code) stays in place.
Specifications
| Item | Poles | Color | H (mm) | W (mm) | L (mm) | Per bag (pcs) | Bags per box |
|---|---|---|---|---|---|---|---|
| APPC-212U | 2P | Red | 10.5 | 19.3 | 10.8 | 1,000 | 10 |
| APPC-213U | 3P | Orange | 13.5 | 19.3 | 10.8 | 1,000 | 10 |
| APPC-214U | 4P | Yellow | 17.5 | 19.3 | 10.8 | 500 | 10 |
| APPC-215U | 5P | Gray | 21 | 19.3 | 10.8 | 500 | 10 |
Retail packs
| Item | Color | Per bag (pcs) | Bags per box |
|---|---|---|---|
| APPC-212U (2P) | Red | 25 / 100 | 20 |
| APPC-213U (3P) | Orange | 25 / 100 | 20 |
| APPC-214U (4P) | Yellow | 25 / 100 | 20 |
| APPC-215U (5P) | Gray | 25 / 100 | 20 |
Available in 25-pc and 100-pc bags
